Flow Rate (Vs), Pressure Dynamic (Pd),Pressure Static (Ps), Pressure Ambient (Pa),Temperature (Ts)

Measured Components

Pitot-tube (Flow), K-type TC (Temp.)

Measurement Principles

Vs : Min 0 ~ 5 m/s , Max 0 ~ 50 m/s

Pd : 2.5 ~ 254 mmH2O

Pa : 500 ~ 1100 hPa

Ts : 0 ~ 1200 ℃

Measuring Ranges

< ±0.5 % FS

Repeatability

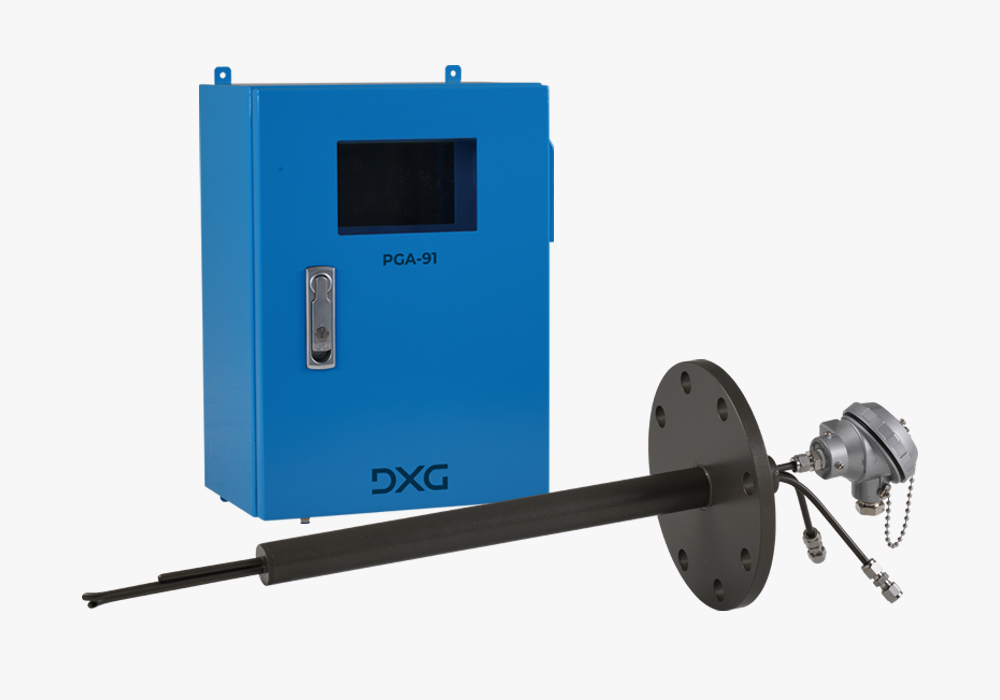

Analyzer Main Unit / S-type Pitot Tube Master Flange / Cables

System Components

Operating Temp. -18 ~ +55 °C

Gas Temp. < 500 °C

Measurement Conditions

Analog Outputs : 2 Channel, 4 ~ 20 Ma

Analog Inputs : 1 Channel (Internal), 4 ~ 20 mA

Digital Outputs : 4 Channel

Digital Inputs : 1 Channel

Display : 7 inch LCD Monitor (Touch Screen)

Input Device : USB

Interface : RS232, 422, 485 LAN (Ethernet) / Hart

Communication

Dimensions : W 350 x D 243 x H 480 mm

Weight : 25 kg

Dimension

Voltage : 110 / 220 VAC, 50 / 60 Hz

Power Consumption : 200 W

Power Supply

Materials : SUS 316 L or SUS 316 Ti

Length : 500 mm ~ 2500 mm

Max. Gas Temp. : < 500°C

Gas Flow Rate : > 0.01 m/s

Weight 1.0 m : 10 kg / 2.0 m : 15 kg

Purge Motor : Necessary (Instrument Air)

Temp. Sensor : K-type Thermocouple

Pitot Tube

Analyzer : 0.2 m3/h

IA (Instrument Air) Consumption

Type Approval (Korea)

US EPA (USA)

CCEP (China)

EAC (Russia)

Certificates & Approvals

PGA-91 : 10 m/s, 20 m/s, 25 m/s, 30 m/s, 50 m/s

PGA-92 : 15 m/s

PGA-93 : 8 m/s

PGA-94 : 5 m/s

Product Variation
